Accessories

Adapters, Cables, Converters, Enclosures, & Power Supplies (off-the-shelf and custom).

Components Express - componentsexpress.com

• Cables for Camera Link, CoaXPress, GigE, USB devices.

• dotworkz - dotworkz.com

  • S-Type

  • STXL

• Vivid Engineering - vividengineering.com

  • CLV Video Splitters

  • CLR Repeaters

  • CLT Converters

  • CLM Selectors

  • CLS Camera Simulators

  • CLB Breakout Box

Off-the-shelf and custom-built adapters, cables, converters and power supplies.

Cables

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est.

• ……………………………….

• ……………………………….

• ……………………………….

• ……………………………….

• ……………………………….

• ……………………………….

• ……………………………….

• ……………………………….

Components Express, Inc. was incorporated in 1992 specializing in datacom and telecom cable assemblies. In 1998, the company began producing telecom devices. By 2001, CEI began building specialty cables for the machine vision market place. Today, our high quality in house manufacturing capabilities and cost – effective international manufacturing operations allow us to offer both simple cable assemblies and complex devices used in the machine vision data path.

CEI offers cables for practically every type of vision interface on the market. Regardless of length or orientation we can help you connect, extend or power up your imaging components and peripherals.

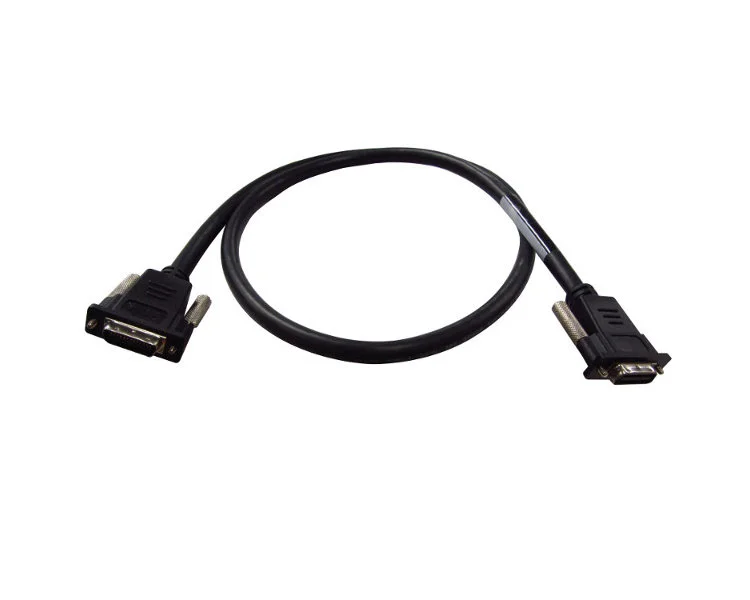

• Camera Link

• Gigabit Ethernet

• Firewire IEEE-1394

• Analog

• BITMAXX Active Camera Link extenders and Gigabit PoE+ Splitters

• Internal Camera Link

Vivid Engineering

CLV-401A Camera Link Video Splitter

Base-configuration duplicator interfaces one Camera Link camera to two frame grabbers. Enables addition of a second frame grabber for camera setup, secondary/parallel processing, monitoring, etc.  Works with any base-configuration camera.  A locking-plug power supply is optional.

CLV-402 Camera Link Video Splitter

All-configuration (base, medium, full, 80-bit) duplicator interfaces one Camera Link camera to two frame grabbers.  Enables addition of a second frame grabber for camera setup, secondary/parallel processing, monitoring, etc.  Works with all Camera Link cameras.

CLV-403 Camera Link Video Splitter

A dual version of our CLV-401a duplicator.  Interfaces two base-configuration Camera Link cameras to two frame grabbers each.  Works with all base-configuration cameras.

CLV-411 Camera Link Video Splitter

Base-configuration duplicator interfaces one Camera Link camera to up-to four frame grabbers. "Master" frame grabber is user-selectable.  Works with all base-configuration cameras.

CLV-412 Camera Link Video Splitter

All-configuration (base, medium, full, 80-bit) duplicator interfaces one Camera Link camera to up-to four frame grabbers. Works with all Camera Link cameras. "Master" frame grabber is user-selectable.

CLR-101C Camera Link Repeater

Value-priced base-configuration extender doubles maximum distance between camera and frame grabber. Works with any base-configuration camera. A locking-plug power supply is optional.

CLR-102 Camera Link PoCL Repeater/Adapter

A cost-effective approach to increasing separation between camera and fame grabber in PoCL (Power over Camera Link) applications. Also acts as an adapter, enabling the use of PoCL cameras with standard (non-PoCL) frame grabbers. Incorporates the PoCL Safe Power feature.

CLR-111A Camera Link Repeater

All-configuration (base, medium, full, 80-bit) extender doubles maximum distance between camera and frame grabber. Works with all Camera Link cameras.

CLT-303R/L Camera Link Translators

Full-featured high-performance adapters enable use of traditional RS-422 and LVDS digital cameras with Camera Link frame grabbers.  “R” and “L” versions support parallel RS-422 and LVDS digital camera data, respectively.  Support cameras with pixel clock rates as low as 2.5 MHz and as high as 85 MHz.

CLT-351R/L Camera Link Translators

Converters enable use of newer Camera Link cameras with frame grabbers incorporating traditional RS-422 and LVDS digital interfaces. “R” and “L” versions support RS-422 and LVDS frame grabbers, respectively. Standard 68-pin AIA frame grabber interface maximizes use of existing and standard cables.

CLT-353R/L Translators

New full-featured converters enable the use of Camera Link cameras with frame grabbers and imaging systems incorporating traditional RS-422 and LVDS digital interfaces. Adapters feature an RS-232 port for camera communication. Very useful for replacing older or obsolete cameras with minimal impact to existing systems.

CLT-361 Camera Link Translator

Converter enables the use of HD-SDI cameras with Camera Link fame grabbers.  Supports 1080p, 1080i, and 720p camera video formats.

CLT-371 Translator

New adapter enables the use of Camera Link cameras with HD-SDI monitors, recorders, etc.  Supports both 1920x1080 and 1280x720 HD-SDI formats.  Very useful converter works with most base-configuration cameras.

CLM-601 Camera Link Multiplexer

Interfaces up-to four base-configuration Camera Link cameras to one frame grabber.  Supports applications requiring the ability to select between multiple cameras. Works with any base-configuration camera.

CLM-602 Multiplexer

New all-configuration (base, medium, full, 80-bit) selector interfaces two Camera Link cameras to one frame grabber. Supports applications requiring the ability to switch between two cameras. A lower-cost 2-port version of our CLM-611.

CLM-611 Camera Link Multiplexer

All-configuration (base, medium, full, 80-bit) multiplexer interfaces up-to four Camera Link cameras to one frame grabber.  Supports applications requiring the ability to select between multiple cameras. Works with all Camera Link cameras.

CLS-211 Camera Link Simulator

Our high-performance video test pattern generator supporting all Camera Link configurations (base/medium/full) plus 80-bit modes.  Fully programmable video timing enables the CLS-211 to mimic the characteristics of cameras with video clock rates up-to 85 MHz. Makes a great tester too.

CLS-212 Camera Link Simulator

Based on the CLS-211 simulator, the CLS-212 adds features for testing and exercising Power Over Camera Link (PoCL) interfaces.  Incorporates the Miniature Camera Link (miniCL) connectors widely used in PoCL applications.  Particularly useful for testing PoCL cables and PoCL frame grabber SafePower functionality.

CLB-501B Camera Link Breakout Box

Provides convenient access to the data transferred between camera and frame grabber over a Camera Link connection.  All video, control, and communication data can be monitored and/or sourced via a connector located on the rear panel.  85-MHz performance.  Works with any base camera.

Provides convenient access to the data transferred between camera and frame grabber over a Camera Link connection. All video, control, and communication data can be monitored and/or sourced via a connector located on the rear panel. 85-MHz performance. Works with any base camera.
